Leading Heavy Duty Ring Twister Machine Manufacturer and Exporter

Request for a Quotation

Download Brochure

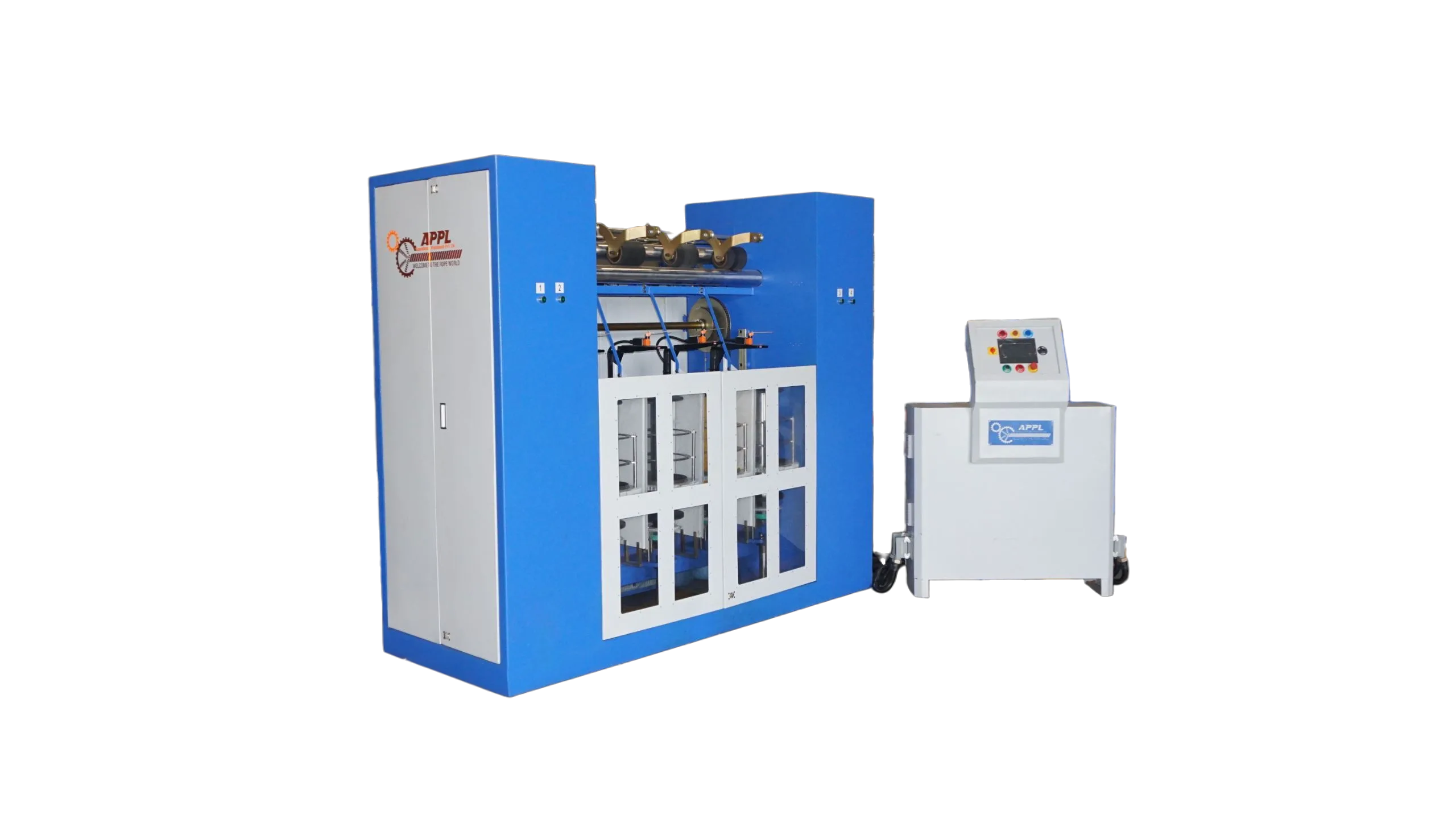

The Heavy Duty Ring Twister Machine is engineered for high-capacity twisting of two or more yarns into strong, uniform rope, twine and industrial cordage. A special flat belt transmission system delivers constant spindle speed even with large weight-capacity bobbins, while each spindle is driven by its own individual motor for reliable, balanced performance.

With a 254 mm (10") ring size, 4800 RPM spindle speed, PLC-HMI control and an electro-mechanical travelling system covering a 75 mm to 550 mm lifting range, the machine ensures perfect twist consistency, smooth package build and minimum maintenance. Its heavy-duty, easy-movable structure makes loading and unloading simple.

Product Description

Specification	Value
Spindle Transmission	Special flat belt system for constant spindle speed even with big weight-capacity bobbins
Spindle Drive	Each spindle belt drive with individual motor spindle
Feeding Speed	Max. 80–100 m/min. Two feeding captions made of heavy-duty metal plated with hard chrome
Spindle RPM	4800 RPM
Pressure Roller	Pressure rubber roller adjusted between two feeding caption rollers for perfect material flow & twist
Ring Size	254 mm (10") with both-side oil lubrication & downward lubrication system
Ring Adaptor	Pressure die casting with both-side oil lubrication points
Ring Type	38.1 mm (1.5") high quality material with hardening & hard chrome plating
Spindle Gauge	300 mm spindle to spindle with side wall to avoid yarn disturbance to other spindles
Spindle Brake	Individual mechanical heavy-duty brake with robust design & low maintenance
Bobbin Type	Flanged bobbin winding / bottle shape winding (any one optional)
Control System	PLC-HMI operated. On-screen adjustable TPM, meter counter, twist direction, etc.
Travelling	Electro-mechanical type with adjustable lifting range 75 mm to 550 mm & layer-to-layer winding
Structure	Heavy-duty structure, easy movable, easy loading & unloading

Request for a Quotation

Fill out the below form and our experts will touch with you within 24 hours.

Name

Company

Select Product

Contact No.

Planning to Buy

Message

I agree to the Privacy Policy and consent to being contacted regarding my enquiry.

COMPANY PROFILE

Aawadkrupa Plastomech Pvt. Ltd. is pioneer and front runner as a Manufacturer & Exporter of wide range of "Plastic Extrusion Plants, Ring Twisters & Rope Making Machineries" in India since year 1996 by employing young ambitious professionally managed team of engineers. In the year 2000 company started manufacturing of monofilament extrusion plant & the entire turnkey project for plastic rope factory. Then after we established another company named "Aawadkrupa Plastomech Pvt. Ltd.", in year 2005. As the neighbouring factory of "Aawadkrupa Plastomech" by expanding our production capacity & manufacturing facilities.The company today is an ISO 9001 : 2015 , 45001 : 2018 , CE & One Star Export House certified

Years
Experience in Industry

Countries
We Export

Additional Components (at extra cost) : Special design creel as per bobbin type, all types of ring travellers as per denier range, flange & bottle flange bobbins, automatic ring oil lubrication device, yarn breaking sensor, internet connectivity for overseas technical support, and a covering & wrapping device for special filament applications.
